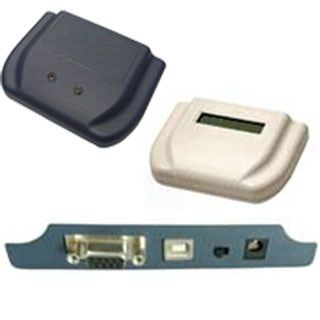

MW58 USB / RS232 Mifare Pro Reader/Write

 Introduction：

The Mifare Pro IC card Reader/Writer is a device which can read and write Mifare Pro Card, smart Card and CPU card. Two SAM card slot are built in, support ISO7816 protocol. The device connects with PC by RS232 UART interface or USD interface. it adopt no device techniques, user-friendly installation. we provide the SDK in different operating systems for users. and attached Demo Software can help to show all the device's functions.

   The MW58  IC card Reader/Writer is front-end processing equipment which is practical for developing and applying the products related to IC card and system integration ,  the rich, perfect interface communication function is widely used in industry and commerce, telecommunications, and Internet etc.

Device Support：Windows98、NT、2000、XP

Code Samples：Visual C++6、Visual Basic 5、Dephi5、PowerBuilder5

Features:

• Support ISO14443A/B contactless card and CPU card;
• Support ISO7816 protocol T=0,T=1 contact CPU card;
•  USB operating mode, no drive，Plug and Play
• RS232 interface, Power from USB Port
• Support Card：mifare® Std 1k、mifare® Std 4k、mifare® UltraLight、mifare® DESFire mifare® Pro 、SHC 1102

Typical Applications:

• Home Banking and Home Shopping
• E-Commerce, E-Purse Application
• Network Security
• Software Licensing
• Digital Signature
• Loyalty Program
• Stored Value
• Identification
• Ticketing
• Banking
• Automatic Fare Collection

Specification：

Mode Description：
